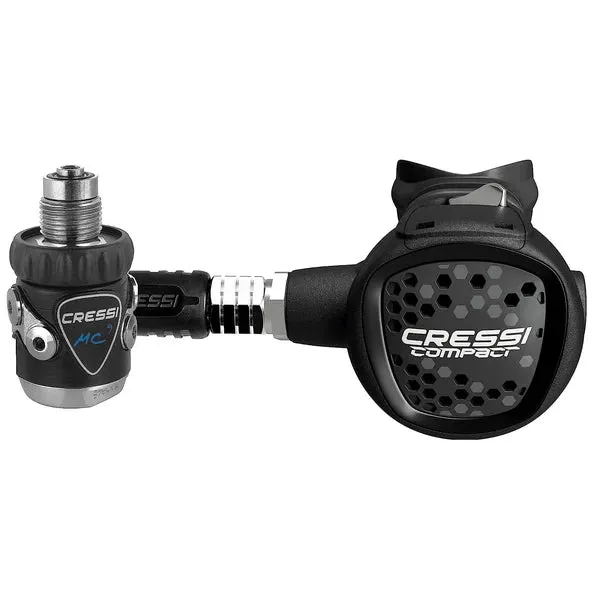

This premiere travel regulator packs maximum performance into minimum space.
A true featherweight second stage, the Compact is built from lightweight techno-polymers to eliminate jaw fatigue.
Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch
for managing freeflow and maximizing performance at depth.
Technical Features 1st Stage :
     - Balanced diaphragm (seal chamber for MC9SC).
     - 2 outlets HP 7/16 UNF.
     - 4 outlets MP 3/8 UNF.
     - Service pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) Yoke version.
     - Calibration pressure : 10 Bar - Brass body Electroless Nickel plated.
     - High capacity conical filter electroless nickel plated.
     - Aisi 316 removable nozzle.
     - Hyper-balancing.
     - Anti-pressure drop pneumatic spring.
     - Setting spring: stainless steel with micropeening treatment.
     - Replaceable cylinder with anti-friction and anti-corrosion properties.
     - Elastomer protector.
     - Flow rate: 4500 l/min.
      - Yoke version weight: 590 gr.
      - Din version weight: 450 gr.

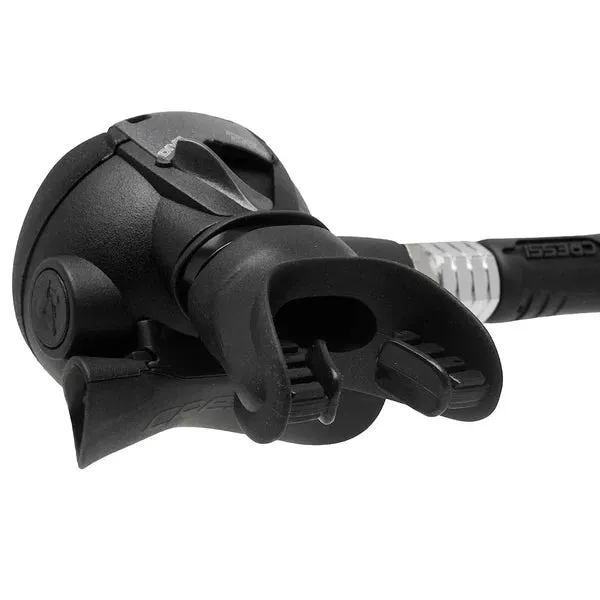

Technical Features 2nd Stage :
    - Downstream system.
   - Adjustable venturi effect.
   - Patented antifriction lever.
   - Big purge button - Anti-scratch surface.
   - Bayonet-type cap holder with security lock - Removable exhaust tee.
   - Weight without hose : 135 gr.
COMBINATION PERFORMANCE
   - Average Cracking effort 6 mbar.
   - Average breathing effort 1 J/l.

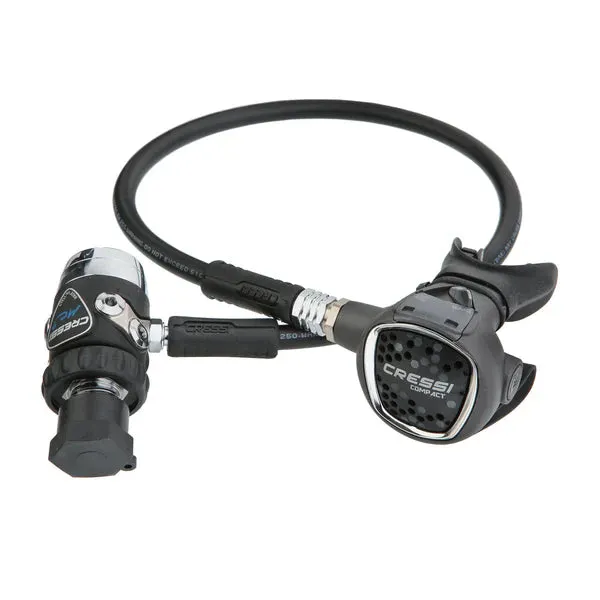

JACKETED HOSE extremely light and flexible weight: 153 gr.
