Marlin Spring Kit
by Palo Verde Gunworks
The Marlin Spring Kit reduces the spring tension of your Marlin rifle action. It will give you a lighter, smoother action and slightly lighter trigger pull. These kits are made by Palo Verde (SASS #56,522).

Fits the following Marlin rifles:
• Model 1894 - All Models
• Model 1895 - All Models
• Model 336 - All Models
• Model 444 - All Models
• Model 39A

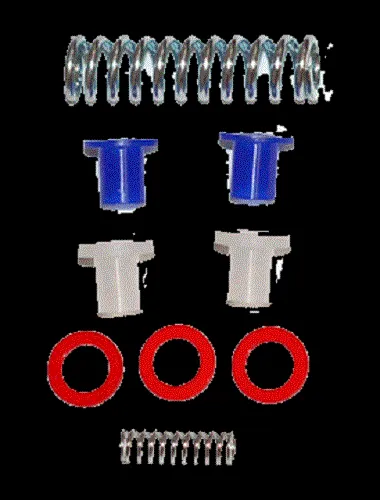

The Marlin Spring Kit contains:
— 1 Hammer Spring
— 2 White Nylon Hammer Spring Bushings
— 2 Blue Nylon Hammer Spring Bushings
— 4 Red Adjuster Washers (only 3 shown in photo)
— 1 Lever Plunger Spring
— Detailed, Step By Step Instructions with Photos


Spring Tension Adjustable to 7 Tension Levels
Unlike other spring kits for Marlin lever action rifles, the Hammer Spring (Main Spring) tension is adjustable to 7 tension levels by using various combinations of the nylon bushings and adjuster washers included in the kit ... without cutting the spring! So, if the tension is too light, you can adjust it without buying a new spring! This tension can be adjusted high enough to accommodate cartridges loaded with very hard primers. Each adjustment step will increase or decrease the spring tension by approximately 8%.

Installation:
The Marlin Spring Kit is easy to install and does not require a gunsmith. Only two tools are needed; a screwdriver to remove the tang screw and a 1/16" pin punch to remove the plunger retaining pin. Detailed, step by step Instructions with photos are included. I can't say if a caveman could do it, but I'm confident I could do it without ever having seen the internals of a Marlin rifle!


Read reviews of the Marlin Spring Kit in the following magazines!
— Larson E. Pettifogger; Springs & Things;Cowboy Chronicle; Volume 26, No. 3, March 2013, Page 24-25. Click Here to Read
— Todd G. Lofgren; Get The Lead Out; Guns of the Old West; Winter 2013, Pages 9 & 15.


Customer Feedback
"Best aftermarket spring upgrade I've ever used for Marlin lever actions."
— Jon B.
