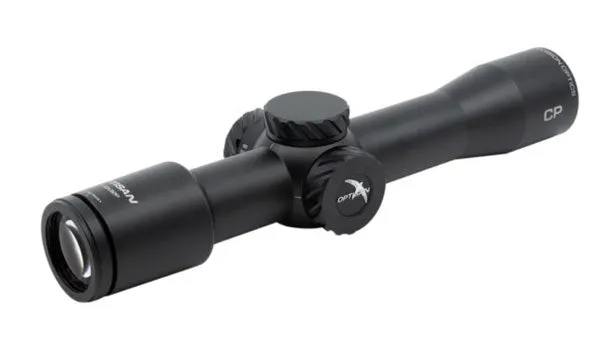

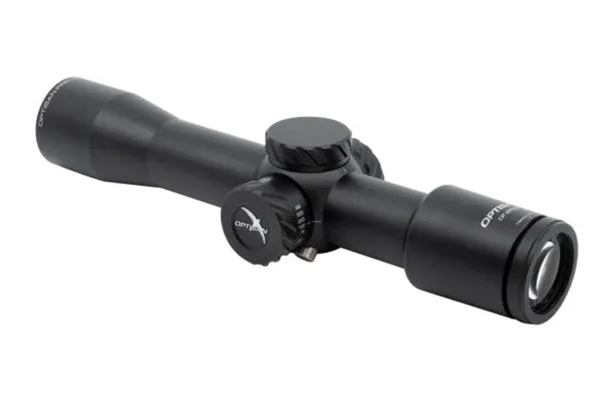

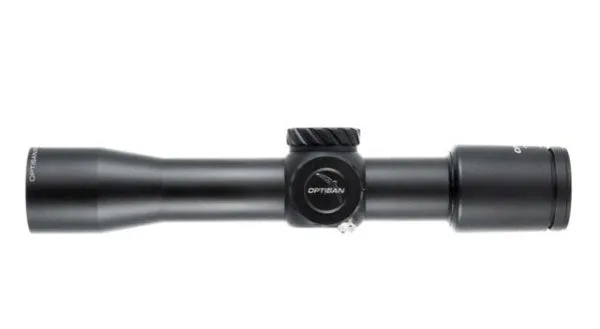

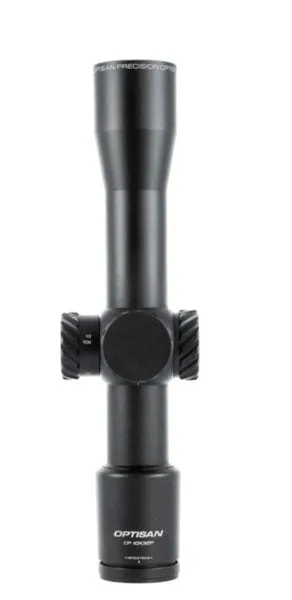

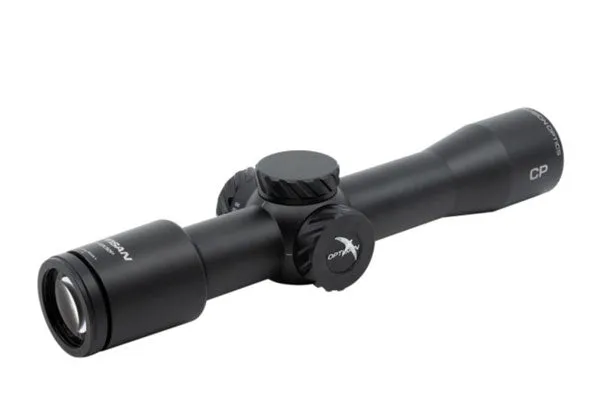

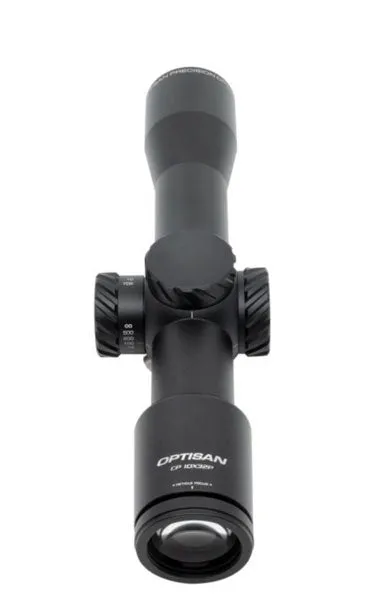

Optisan CP Compact 10x32 SFP MIL

Name: Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
SKU: 683127

Non-Illuminated MH10 Rifle Scope

Introducing the (NEW FOR 2020!) Optisan CP Compact 10x32 MIL MH10 Rifle Scope.

Compact and lightweight - well matched to the latest generation of compact rifles.

This is a small compact rifle scope, not the normal full size scope you may expect.

Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.

Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.

The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.

Optisan Optics
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
04003
1x-10x
Second
30 mm

OPTICAL DATA
Magnification (High) 10X
Magnification (Low) 10X
Objective Diameter (mm) 32mm
Outer dia. Objective (mm) 40mm
FOV (min.mag）(ft/100yds) 10.80
FOV (max.mag）(ft/100yds) 10.80
Eye relief (in) 3.24"
Exit Pupil (Max mag.） (mm) 3.2 mm
Exit Pupil (min. mag.） (mm) 3.2 mm
Diopter Range (dpt) /- 2.0
Parallax Adjustment 10yds - infinity (100yds pa free)
Coating Fully Multi-coated
MECHANICAL DATA
Tube Construction One-piece tube, aircraft aluminum
Elevation Adjustment (value per click) 0.1 mrad
Windage Adjustment (value per click) 0.1 mrad
Turret Style (Elevation) Low-profile, Zero-resettable
Turret Style (Windage) Low-profile, Zero-resettable
Travel Per Rotation 10 mrad
Elevation adj. range ≥ 20 mrad
Windage adj. range ≥ 20 mrad
Eye Piece Diameter (in) 1.55''
Eye Piece Diameter (mm) 39.5 mm
Eye Piece Length (in) 1.65''
Eye Piece Length (mm) 42 mm
Mounting Length rear (mm) 55.50 mm
Mounting Length front (mm) 37.50mm
Tube Dia. (mm) 30 mm
Length (in) 9.52''
Length (mm) 242mm
Weight (g) 478
Weight (oz) 16.86
Surface Finish Matte Black
ENVIRONMENT DATA
Functional temperature -20 ~ 50 degree celcius
Storage temperature -20 ~ 50 degree celcius
Submersion tightness JIS 7

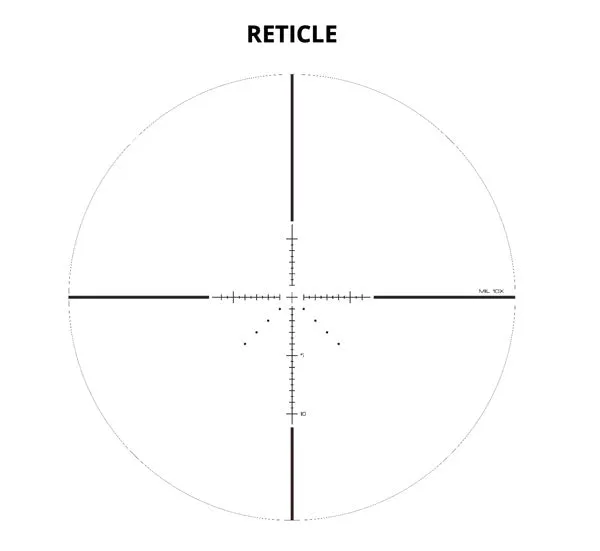

RETICLE DATA
Reticle SFPMH10X
Calibrated Ranging Power 10X
Focal plane Second
Illumination Non-illuminated
DELIVERY INCLUDE
Standard Accessories 2.5'' sunshade
Lens covers
FEATURES

- Compact design

Only 25.4 cm length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.

- Minimized Parallax error

By using a 32mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.

This means that you can leave the parallax fixed and shoot targets at different distances whilst experiencing minimal shift of impact, this is very helpful in many competitive and hunting shooting situations.

Parallax adjustment range is from 10 yards up to 500 yards to infinity,

- Springer rated

Field-tested by Champion shooters for more than for one year on spring air rifles it is a robust riflescope that is capable of use larger caliber rifles including centerfire
