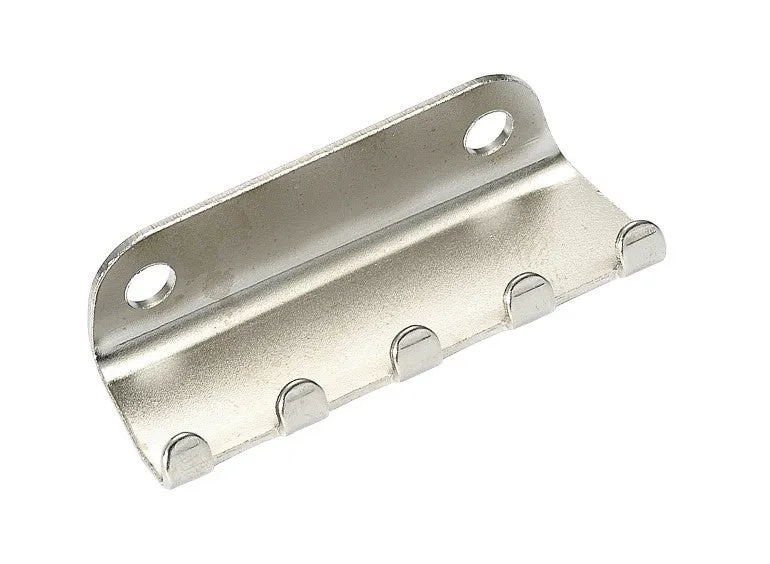

Tremolo Spring Claw

• Installed in the tremolo cavity at the back of guitar
• Secured by two screws, not included but available
• Trem tension springs attach to hooks on the claw, available

Dimensions

• Thickness: 1.2mm
• Claw side: Length at widest point: 50mm

              : Length at narrowest point: 48mm

              : Distance between each claw prong: 11mm

              : Depth : 17mm

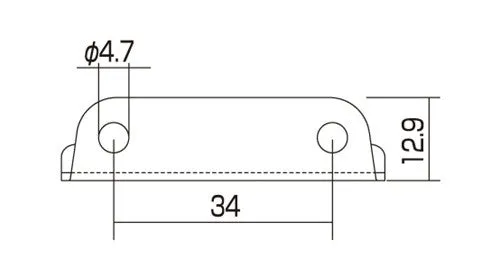

• Hole side : Length at widest point: 47mm

              : Length at narrowest point: 40mm

              : Distance between screw holes: 34mm

              : Depth : 13mm
